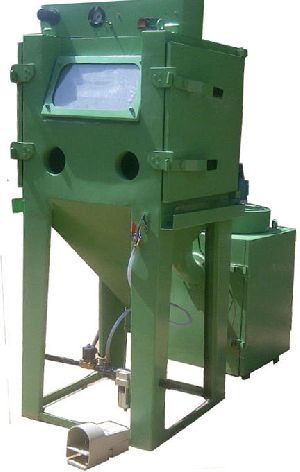

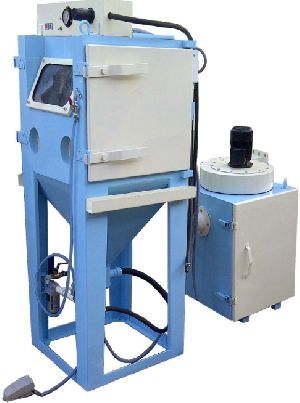

Suction Blasting Cabinet Machine

Suction Blasting Cabinet Machine
Business Type Manufacturer, Supplier
Weight 100-200kg
Voltage 220V, 380V
Power 1-3kw
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Driven Type

Super Blaster works on induction-suction principle of abrasive delivery.Suction blaster  is recommended for light and medium sized components where the surface is to be cleaned. Suction Blaster is the simplest and most effective way to remove corrosion and old paint. Super Blaster is useful for heat treatment shops, tool, dye and mould makers and shot peening of light metal components etc. When the cabinet and power module are correctly set-up, the cabinet is ready for operation by actuation of the foot pedal. air to flow through the blast gun , when fully depressing the foot pedal. Air moving through the gun draws media into the blast gun mixing chamber. The media mixes with the air and is propelled out the nozzle. After striking the object being blasted, the blast media, along with fines,dust, and by products generated by blasting, fall through the grate into the cabinet hopper for separation, the particles are drawn into the reclaimer. Dust and fines are  separated in the reusable blast media , then  media is screened of oversize particles, and returned to the reclaimer hopper for reuse.  Dust and fines are drawn from the reclaimer into the dust collector which traps the dust. Discharging clean air , when the foot pedal is released the blasting stop.

Available in three standard models :

  • MSB-6060
  • MSB-9182
  • MSB-12090

Options available on request :

  • Reverse jet cartridge filter dust collectors.
  • ON / OFF Fitted with optional accessories.
  • Rubber lining inside walls of cabinets.
  • Higher output blast guns in place of standard.
  • Foot operated treadle switches for blasting.
